SERVICES

3D LASER SCANNING

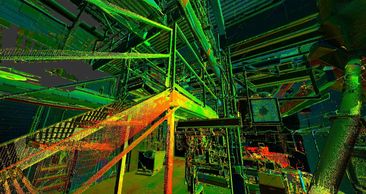

A set of 3D Scans is a point cloud, basically a combination of billions of points representing the exact geometry of objects in the environment. From a point cloud Piping, Structure, and Equipment can be modelled in millimeter accuracy for As-Built, Engineering Design, and Conceptual Project Models. The starting point for all other services.

ENGINEERING DRAFTING

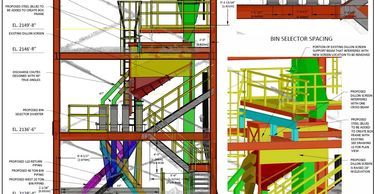

Combining Scan Data, 3D Models, Field Data, Engineering Design, and client requirements to create highly accurate drawing deliverables. Plan, Elevation, and Fabrication drawings combine to create accurate and sophisticated drawing packages.

3D MODELLING


Using the latest in 3D CAD Modelling software we develop 3D Models and Fabrication drawings in every discipline.  Custom Part and Assembly modelling, Prototype Design, Complex Construction Design, Structural Layouts, and Equipment.

WELL SITE, HDD, PLOT PLANS

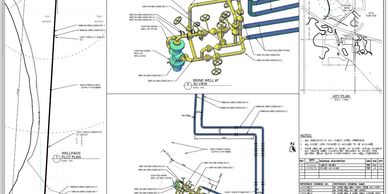

As-Built Laser Scans of Piping Systems are auto-detected from Point Clouds to create Isometric Drawings.  AutoCAD Plant 3D allows us to create Well Site and Plot Plan drawings containing spec driven 3D Piping.  Horizontal Direction Drill Profiles and P&ID drawings are direct deliverables we create.

RESIDENTIAL BLUEPRINTS

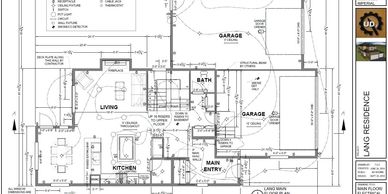

Residential and Commercial Design project come to life as 2D floorplans and 3D walk-throughs are developed.  Complete Building code requirement drawing packages are prepared through client consultations ready for Building Permits and Contractor/Builder Estimates.

LOGO & GRAPHIC DESIGN


Have a neat concept in mind for your business logo. We transform your napkin ideas into stunning high res logo and stationary graphics ready for websites, business cards, posters, or flyers.  Stationary is printed and delivered to your door.
